Wizard USB Multimedia Extender

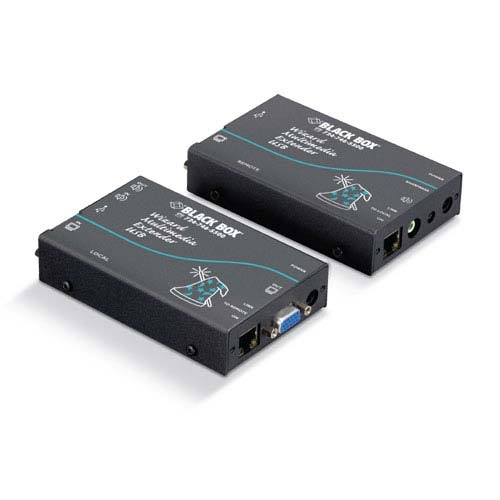

Photo may vary from actual product


Wizard USB Multimedia Extender


Send audio and video to multiple touch screens over CATx


  • Extend VGA video and audio signals 50 metres over CAT5/5e/6 cable!
  • Connect monitors, touch screens, speakers, keyboards, cameras and other USB 2.0 and 1.1 devices.
  • Extend video from computers with dual monitors to touch screens and interactive kiosks.
  • Provides ultra sharp, high-resolution video of 1920 x 1200.
  • Fully supports DDC for crisp, high-res video.
  • Digital transmission of clickless 44.1-kHz CD-quality stereo audio.
  • Operation is fully transparent; use with all USB devices and all operating systems.
  • An extended common mode input range eliminates interference.
  • Video and audio outputs on the local unit enable local control of remote devices.
  • Warranty — 2 years.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code   Unit price   Quantity
VGA, audio, USB 2.0
50m

Extender Kit
  Wizard USB Multimedia Extender
Wizard USB Multimedia Extender
  AVU5020A
On request

Add to shopping basket

The small, easy-to-use Wizard USB Multimedia Extender transfers more signals than ever before. With this extender kit's local and remote unit installed in your application, your video, audio, USB touch screen and three other USB channels are all readily and reliably available at up to 50m away.

Highly efficient transmission methods ensure that high-resolution video is supported with CD-quality digital sound. The Wizard USB Multimedia Extender provides high-quality video at up to 1920 x 1200 as well as 44.1 KHz digital stereo audio over a single CATx cable.

Four full-speed USB 2.0 devices can be used simultaneously with full support for disconnect/re-connect at any time without causing errors.

The extender units are quickly installed and totally transparent in operation. All connectors are industry standard, and the video sharpness adjustments are made using a simple rotary dial.

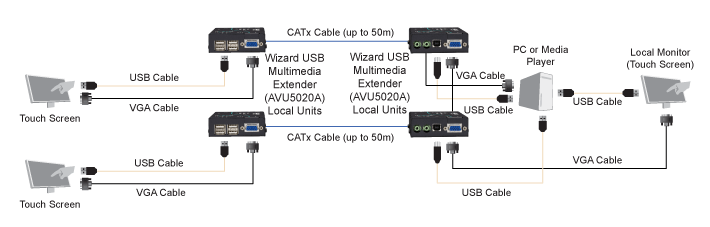

Whether you are creating a multiple touch screen system or a cost-effective distributed audiovisual system, the Wizard USB Multimedia Extender units provide the power and flexibility to create the right solution.
