RS-232 - Current Loop Converters

The converters can be configured for active or passive Current Loop. In active mode, an async RS-232 device can communicate with a passive 20-mA Current Loop device. In passive mode, an async RS-232 device can communicate with an active 20-mA Current Loop device.

This compact solution is configured as RS-232 (DCE). Each converter has a Transmit (T+ and T-) and a Receive (R+ and R-) loop. Optical isolators in both the transmit and receive loops keep out electrical interference and eliminate ground loops.

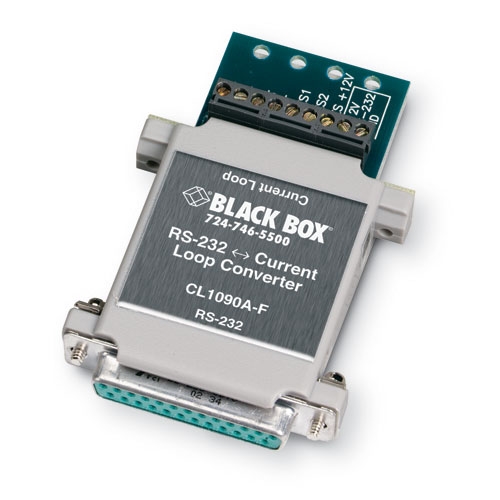

CL1090A-F
Operation —Active or passive unipolar 20-mA Current Loop

PS1003A-R2 (included in CL1090A-F-EU)
Power — From the interface or external wallmount power supply,
input: 100-240 VAC, 50-60 Hz, 0.03 Amp,
output: - 12 VDC, 500 mA ms, 6 watt,
includes interchangeable plugs for US, EU, UK, AU, CN

CL1090A-F:
(1) RS232 to CL Converter

CL1090A-F-EU
(1) RS232 to CL Converter
(1) Power supply (PS1003-R2) with interchangable plugs US, EU, UK, AU, CN
