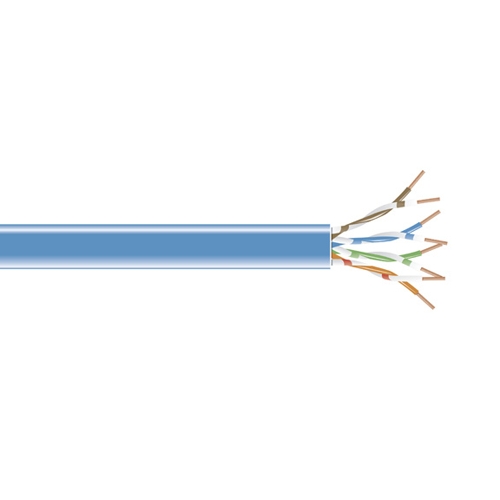

Cable UTP trenzado GigaBase 350 CAT5e

The right cable for high-performance CAT5e patches and short runs. They are designed for use with GigaBase® products but work also together with other components. Their tuned-plug design maintains a tighter twist. They also privde enhanced performance parameters and electrical characteristics. Finally the offer an improved near-end crosstalk (NEXT) compared to standard CAT5 cable. Choose from a wide variety of colours to easily identify your connections.

Attenuation (Maximum) -
24.2 dB/100 m at 100 MHz;
49.3 dB/100 m at 350 MHz
Cable Type — 4-pair UTP
Conductor Gauge - 24 AWG, 7-32 stranded copper
Frequency — Up to 350 MHz
Impedance — 100 ± 15 ohms
NEXT (Minimum) —
40.3 dB/100 m at 100 MHz;
32.2 dB/100 m at 350 MHz
PS-NEXT (Minimum) —
38.3 dB/100 m at 100 MHz;
30.2 dB/100 m at 350 MHz
Return Loss (Minimum) -
20.1 dB/100 m at 100 MHz;
16.3 dB/100 m at 350 MHz
Standards — TIA/EIA-568-B.2 Category 5e

TAA compliant — YES
