WMD19-2125-PQE: 19U, 540(W) x 622(D) mm
La foto puede diferir del producto real
Double-Hinged Wallmount Cabinets
Double-Hinged Wallmount Cabinets

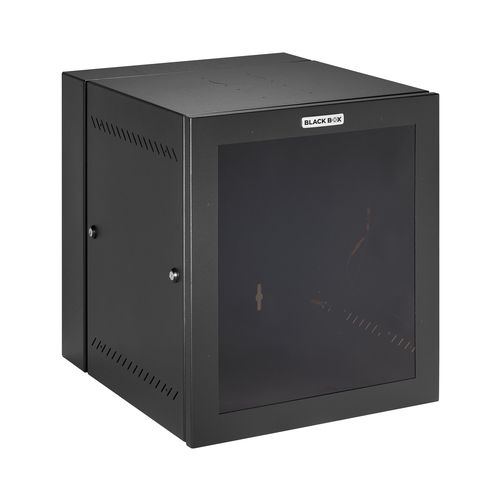

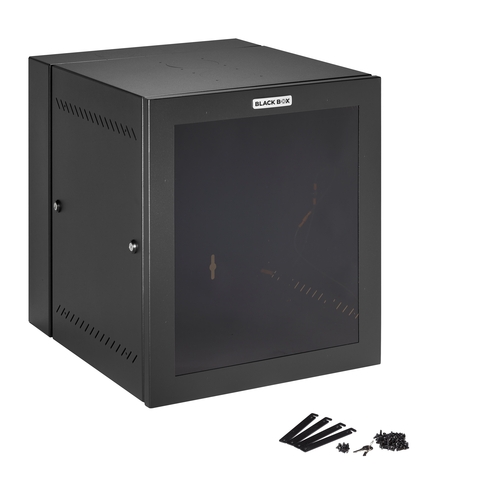

WMD12-2125-PQE: 12U, 540(W) x 622(D)mm
WMD12-2125-PQE: 12U, 540(W) x 622(D)mm
WMD12-2125-PQE: 12U, 540(W) x 622(D)mm
WMD12-2125-PQE: 12U, 540(W) x 622(D)mm
WMD19-2125-PQE: 19U, 540(W) x 622(D) mm


Double-Hinged Wallmount Cabinets


Versatile cabinet secures and organizes rack equipment in wiring closets and other locations with floor space constraints, while swinging away from wall to allow for convenient rear access to equipment.


  • Wallmount cabinet secures rack equipment while minimizing system footprint

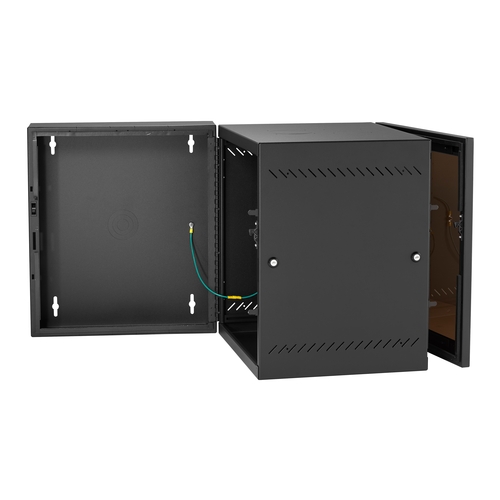

  • Double-hinged design swings away from wall for easy rear equipment access
  • Full piano hinge provides added strength for rear section of cabinet
  • Robust design supports a maximum weight capacity.
  • Individually keyed doors allow for independent locking of front and rear
  • Cabinet can be configured to open door from either right or left
  • Horseshoe knockouts on rear door enable easy installation of pre-terminated cable and equipment
  • Vented sides provide air circulation to help keep equipment cool
  • Space for optional top-panel mounted fan assembly for additional cooling capability
  • Adjustable rack angles allow for various equipment mounting depths

  Producto       Código   Precio unitario   Cantidad


12U, 540(W) x 622(D)mm
  Wallmount Cabinet/Rack Enclosure- (19”) Rackmount, 68-kg Capacity
Wallmount Cabinet/Rack Enclosure- (19”) Rackmount, 68-kg Capacity
  WMD12-2125-PQE Compra por última vez
Consultar

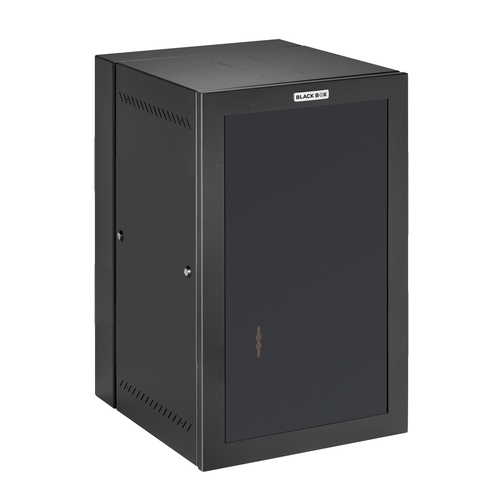

19U, 540(W) x 622(D) mm
  Wallmount Cabinet/Rack Enclosure -(19”) Rackmount, 113-kg Capacity
Wallmount Cabinet/Rack Enclosure -(19”) Rackmount, 113-kg Capacity
  WMD19-2125-PQE Compra por última vez
Consultar

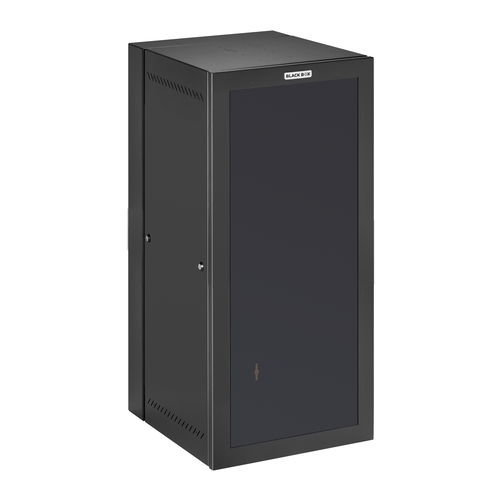

25U, 540(W) x 622(D) mm
  Wallmount Cabinet/Rack Enclosure - (19”) Rackmount, 159-kg Capacity
Wallmount Cabinet/Rack Enclosure - (19”) Rackmount, 159-kg Capacity
  WMD25-2125-PQE Compra por última vez
Consultar

Los productos indicados por la última compra se descontinuarán una vez que se agote el stock restante. Llame a nuestro departamento de ventas para obtener más información o artículos alternativos.

Accesorios

  Producto     Código   Precio unitario   Cantidad

  Fan Filter Kit - (4) 4-in. Filters, RF207 and RM386 Series Fans
Fan Filter Kit - (4) 4-in. Filters, RF207 and RM386 Series Fans
  RM386-220V
Consultar

  Gestor de cables para montaje en rack informático horizontal - Single-Sided, 1U (19" Rackmountable)
Gestor de cables para montaje en rack informático horizontal
  RMT100A-R4
Consultar

  Gestor de cables para montaje en rack informático horizontal - Single-Sided, 2U (19" Rackmountable)
Gestor de cables para montaje en rack informático horizontal
  RMT102A-R4
Consultar


The Black Box Wallmount Cabinet Enclosure is designed to provide access, security, and cooling for 19-inch rack equipment. It is perfect for use in network wiring closets, small offices, healthcare, retail establishments, restaurants/bars, and any other locations with floor space constraints. The cabinet features heavy-duty solid steel construction with a maximum load capacity.

This wallmount enclosure was built to perform, with a robust design that can stand up to your environment while remaining easy to deploy. Once installed, its dual-hinged design allows for the rear section to swing away from the wall, providing the user with easy rear access to their equipment and cabling and giving you the ability to manage your equipment from either side. Cable entry and management are also made easy with knockouts that are provided on the rear section of the unit.

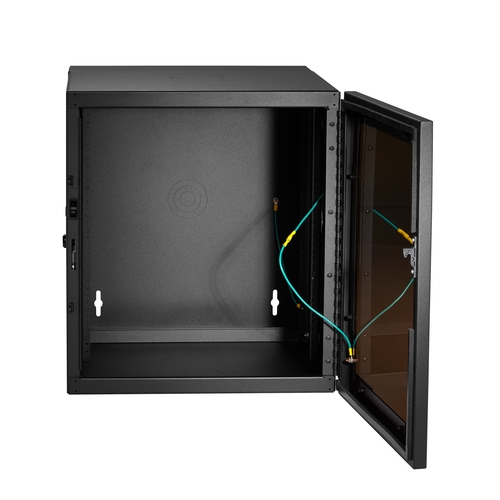

The cabinet's front panel is lockable and features a plexiglass window, with the cabinet being configurable to allow for the door to open from either the right or the left. The rack angles within the cabinet feature M6 square holes, and are adjustable to allow for mounting at various equipment depths. The side panels are vented, providing air circulation that helps keep your equipment cool. If additional cooling is required, an optional fan assembly can be mounted on the top panel of the unit to help reduce heat.
